Your current location :Home / Products / Drying equipment series / CT, CT-C hot air circulation oven

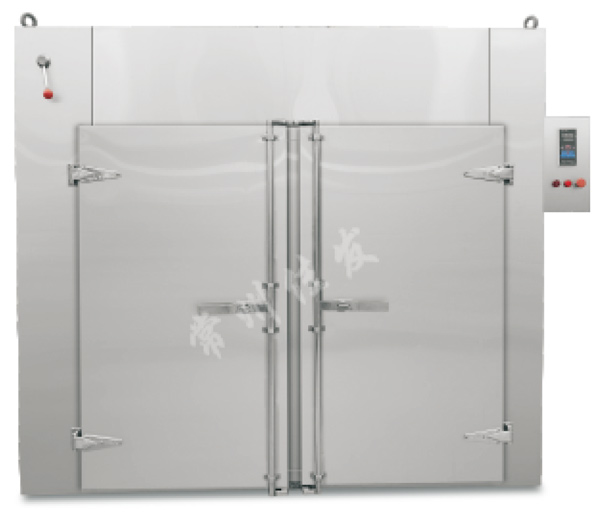

CT, CT-C hot air circulation oven
The biggest feature of an oven is that most of the hot air circulates inside the oven, thereby increasing heat transfer and saving energy.
13606122988
Details

Application Overview

  The biggest feature of an oven is that most of the hot air circulates inside the oven, thereby increasing heat transfer and saving energy. It utilizes the effect of forced ventilation to reduce the temperature difference between the upper and lower parts. Our factory's ovens are equipped with air distribution devices, and users can adjust the fan blades before use to ensure the optimal temperature difference between the upper and lower parts.


Parameters

Project specifications

Each drying amount(kg)

Allocated power(kw)

Steam consumption(kg/h)

Heat dissipation area(m2)

Air volume(m3/h)

Temperature difference between upper and lower parts(℃)

Equipped with baking tray

Wide overall dimensions × depth × high(mm)

Supporting drying truck

CT-I

100

1.1

20

20

1400

±2

48

2430×1200×2375

2

CT-II

200

1.1

40

40

5200

±2

96

2430×2200×2433

4

CT-III

300

2.2

60

80

9800

±2

144

3430×2200×2620

6

CT-IV

400

2.2

80

100

9800

±2

192

4380×2200×2620

8

CT-C-O

25

0.45

15

15

3450

±2

16

1550×1000×2044

0

CT-C-I

100

0.45

20

20

3450

±2

48

2300×1200×2300

2

CT-C-II

200

0.9

40

40

6900

±2

96

2300×2200×2300

4

CT-C-III

300

1.35

60

80

10350

±2

144

2300×3220×2000

6

CT-C-IV

400

1.8

80

100

13800

±2

192

4460×2200×2290

8

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

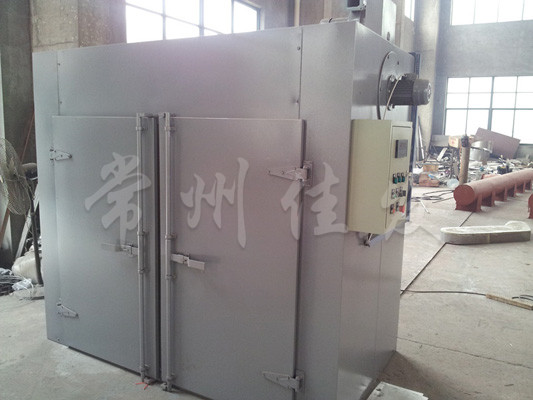

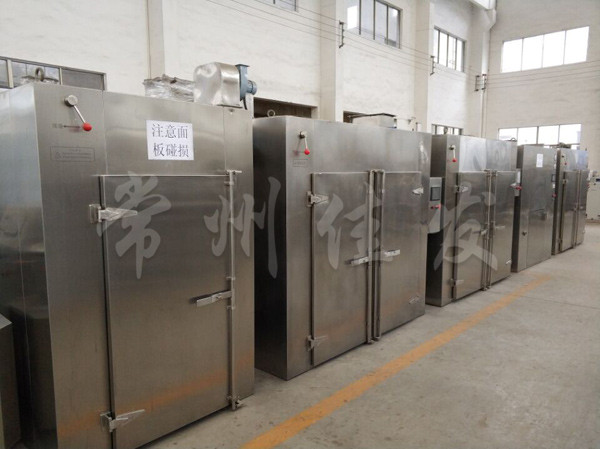

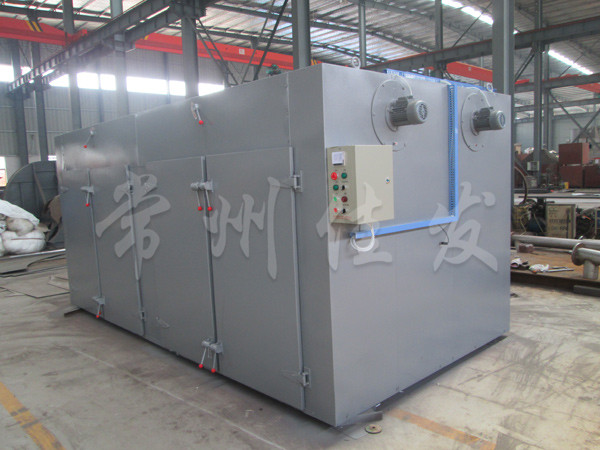

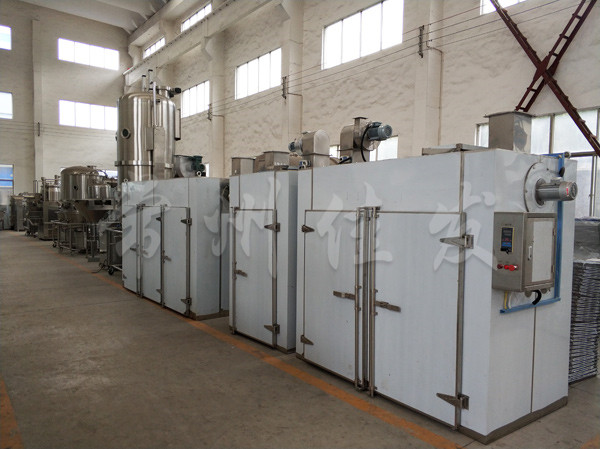

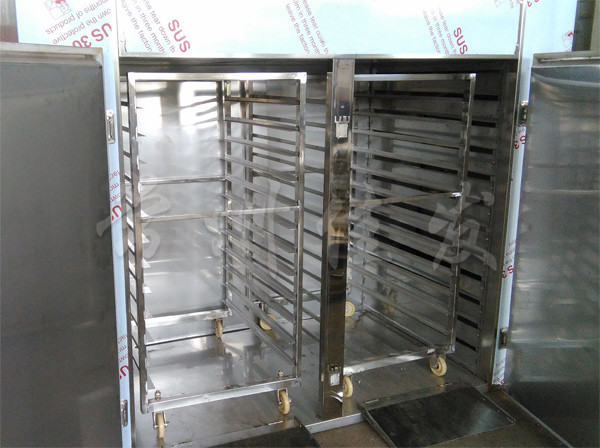

Photos
